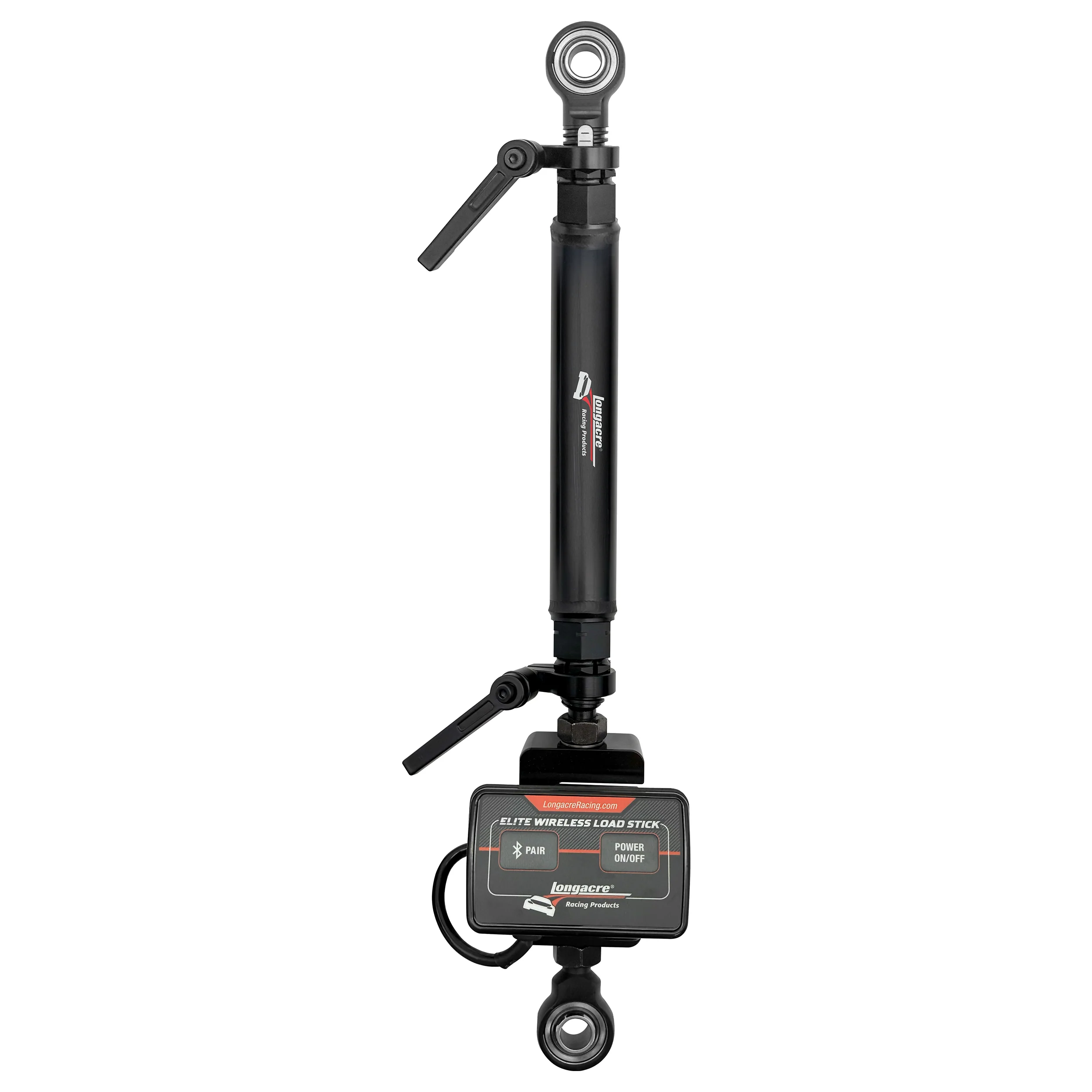

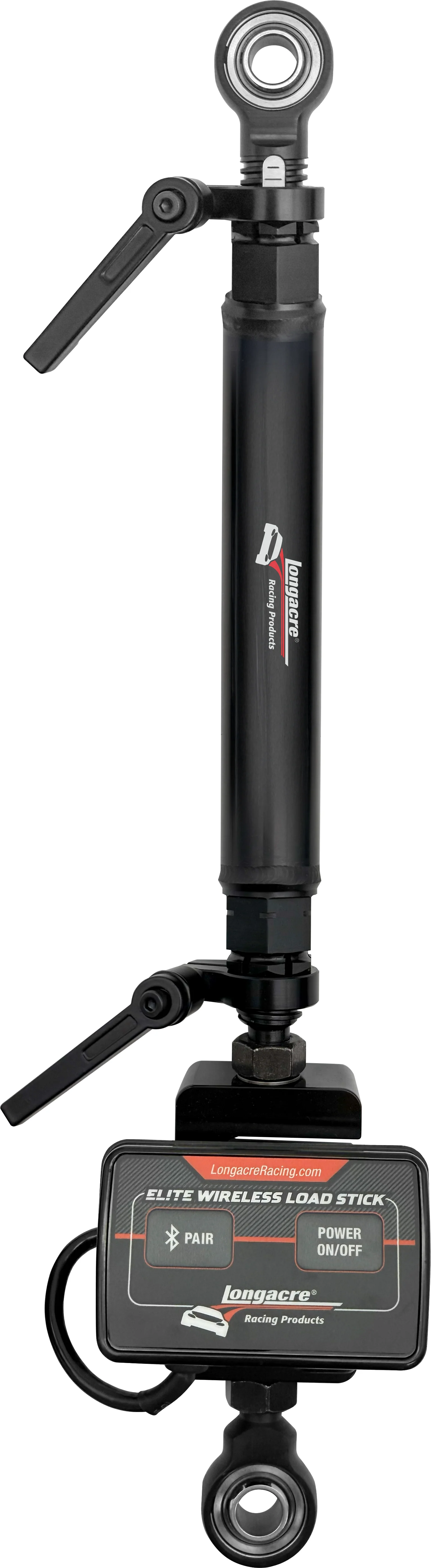

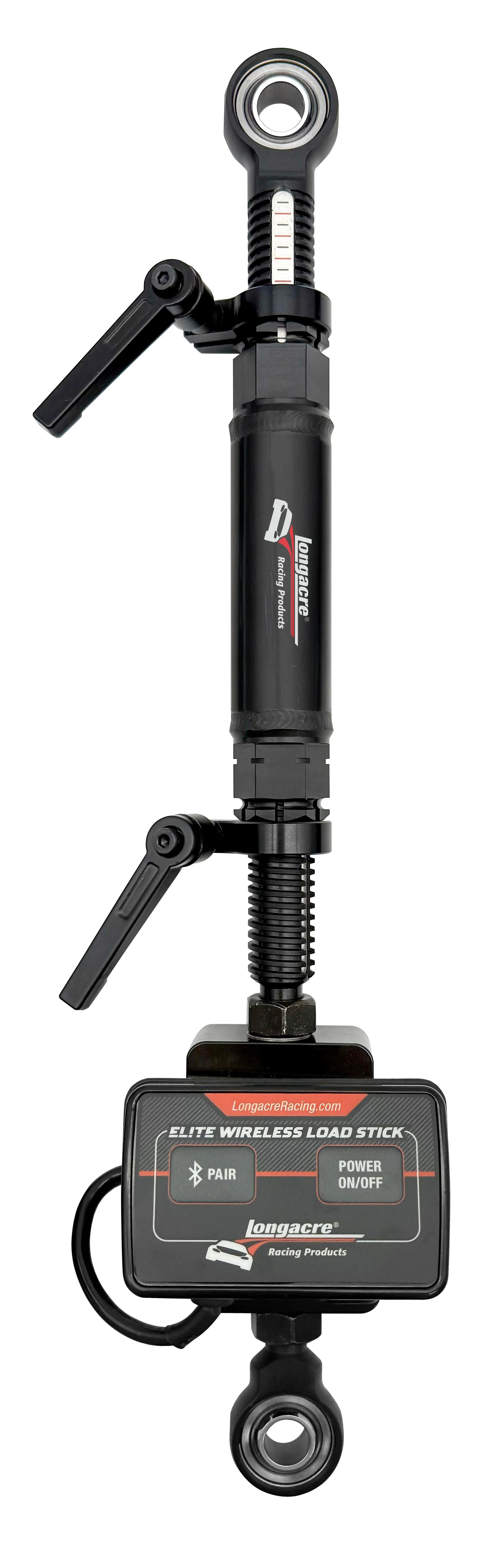

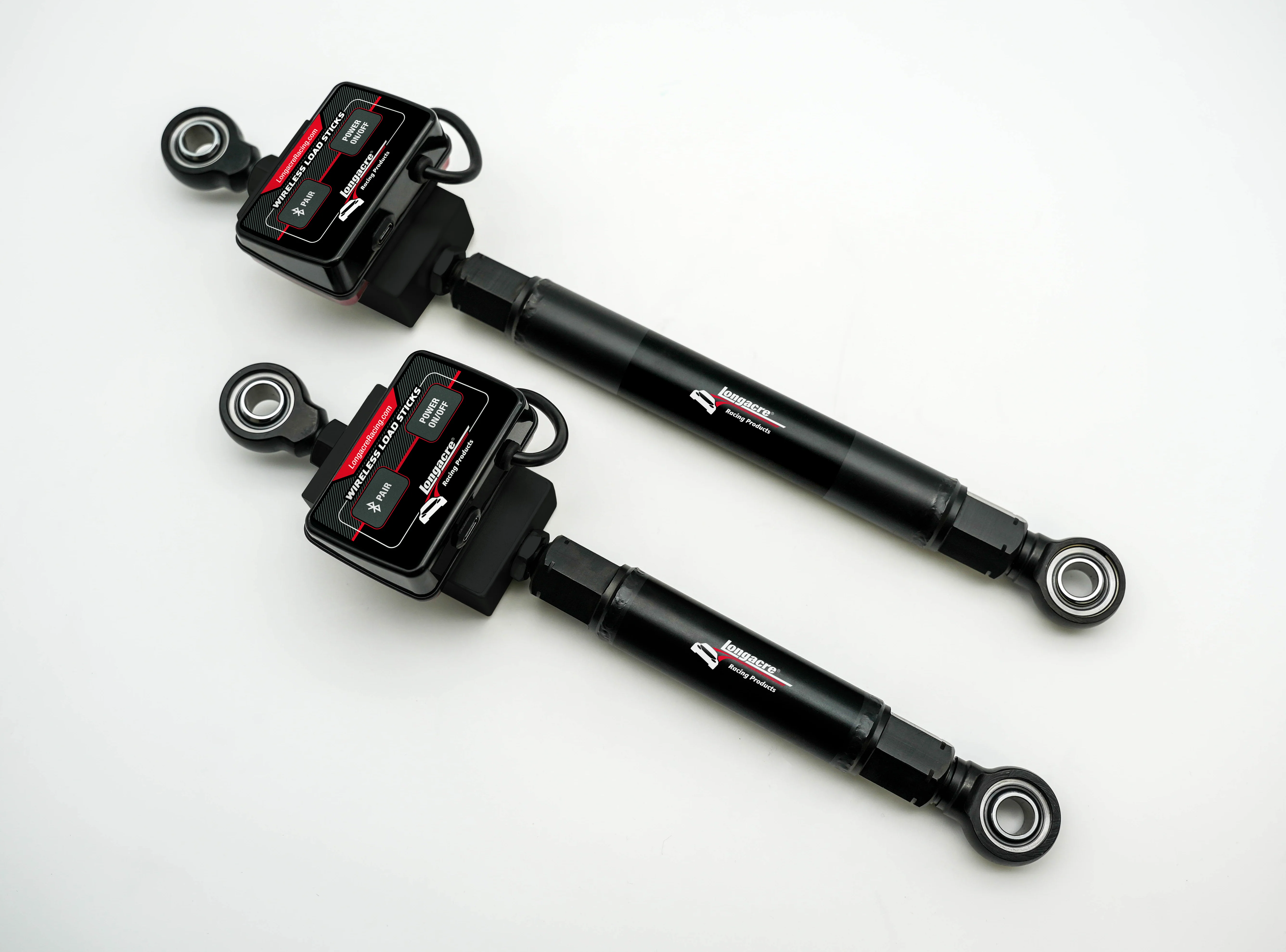

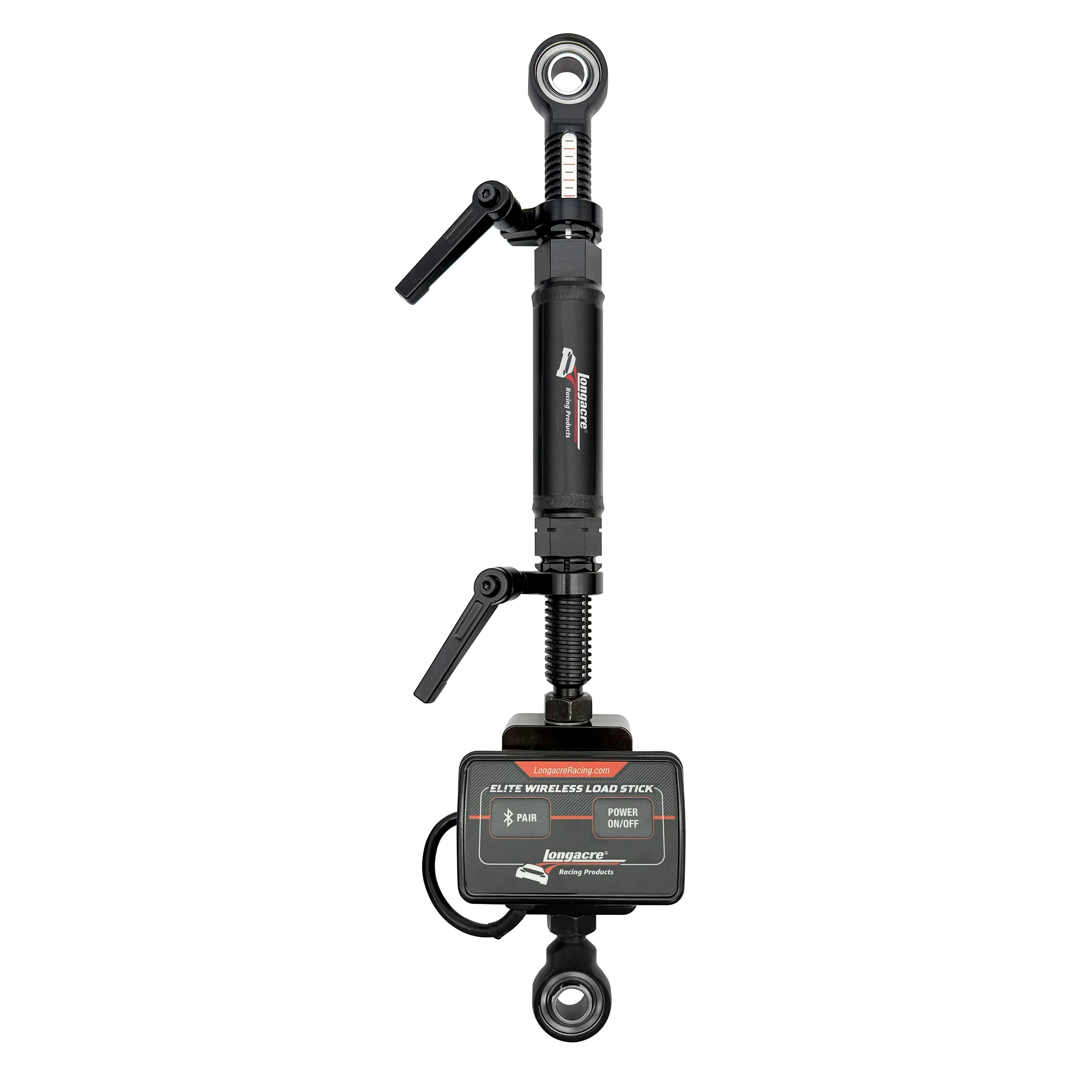

Longacre Elite Load Sticks

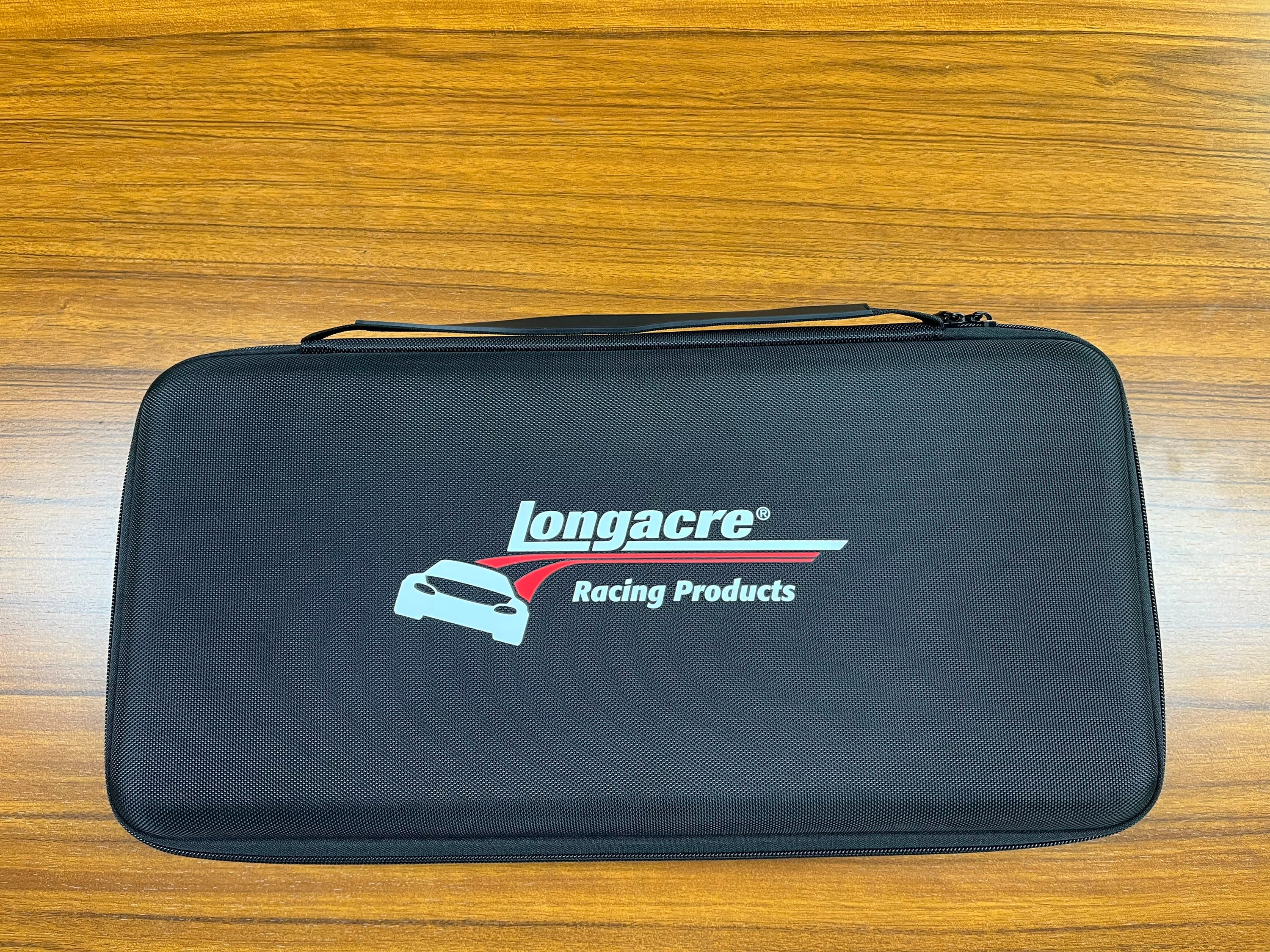

Designed for precision, convenience, and seamless connectivity. These advanced load sticks wirelessly connect to the Longacre Connect app on your preferred Android or iOS device using a simplified yet secure pairing process. The user-configurable app interface lets you view live and saved load data side by side, while also offering pages for note-taking, ride height, alignment, and setup organization. With extended memory capacity, all your setup data is stored for easy access and can be exported effortlessly via email or file-sharing. Monitor battery levels directly from the app, ensuring you’re always ready to go. Built with fully machined components and finished with a low-friction coating for bind-free performance, each system includes a 3,000 lb wireless load stick, Lithium ion rechargeable batteries, and a custom storage case - delivering strength, durability, and performance in one compact package.

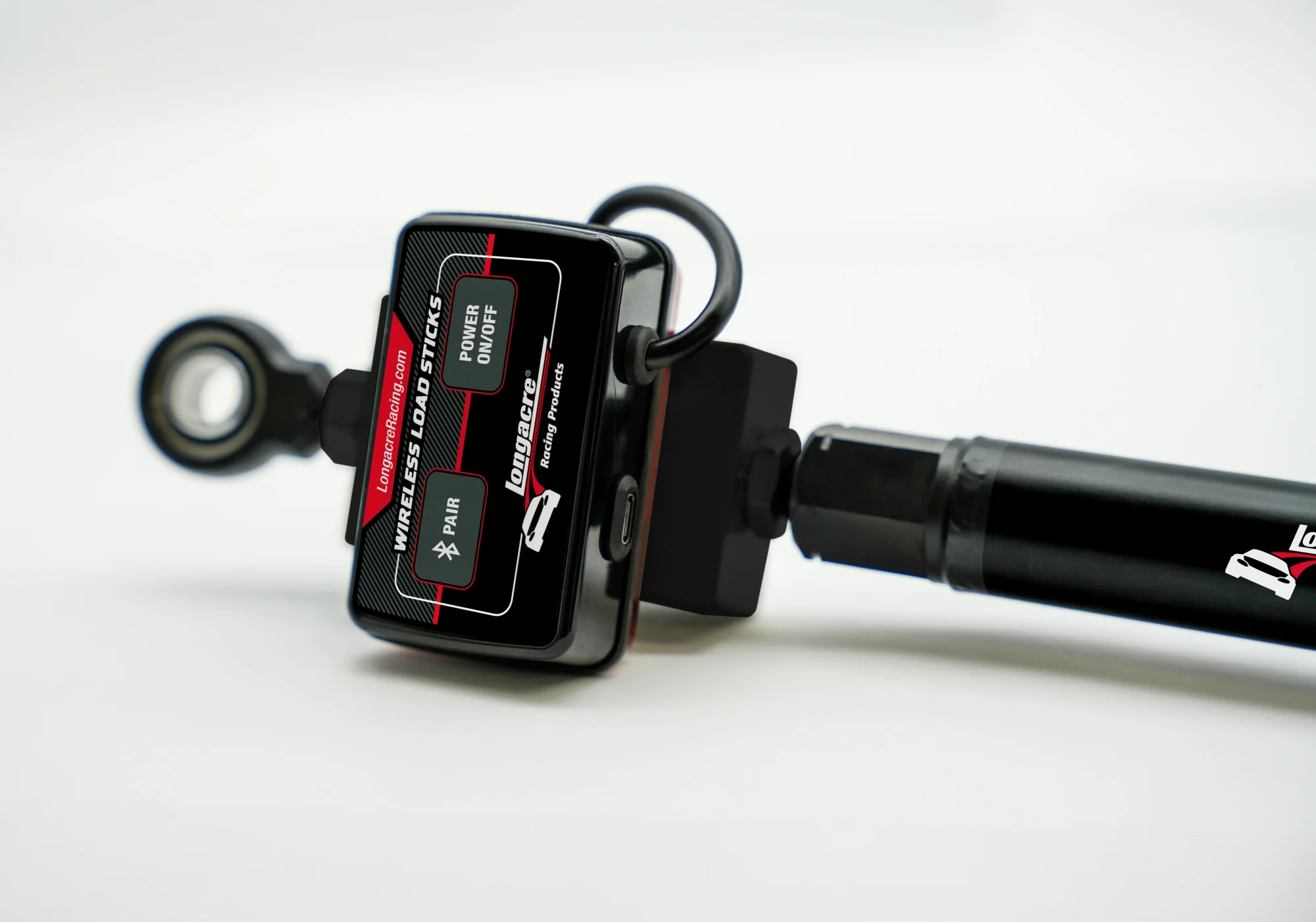

SEAMLESS WIRELESS INTEGRATION
Instantly connect to the Longacre Connect app via Bluetooth for realtime data and effortless control.

FLEXIBLE CONFIGURATION OPTIONS

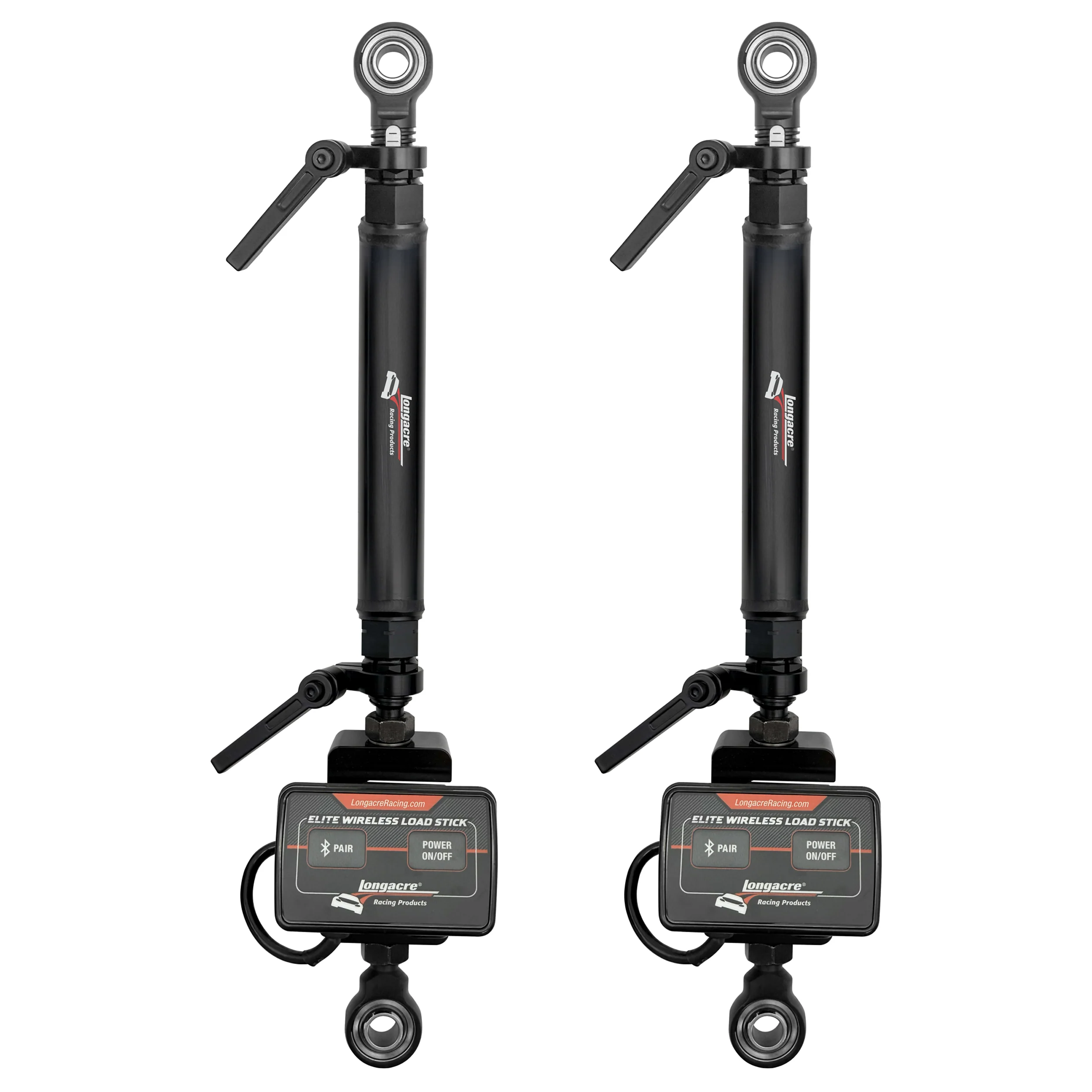

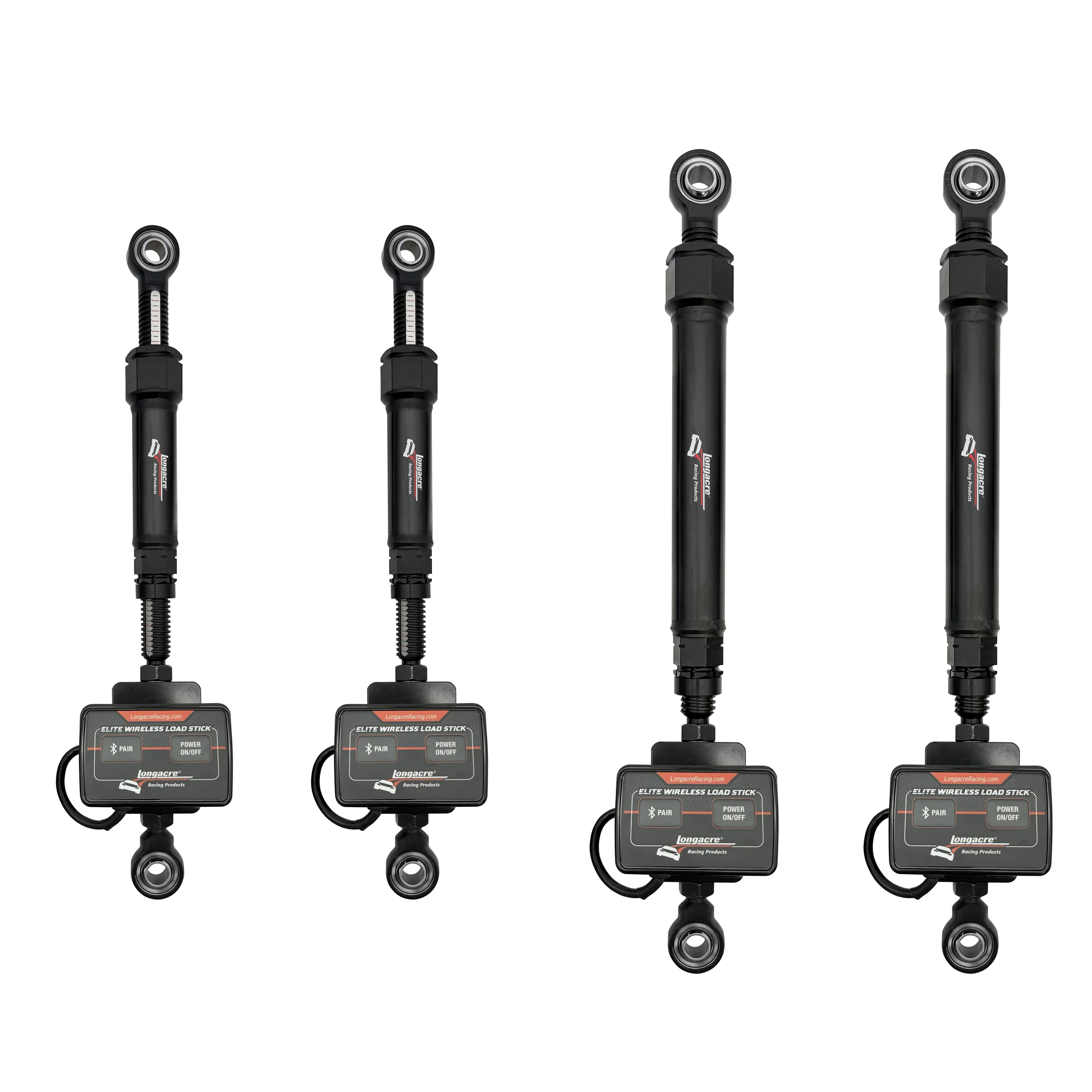

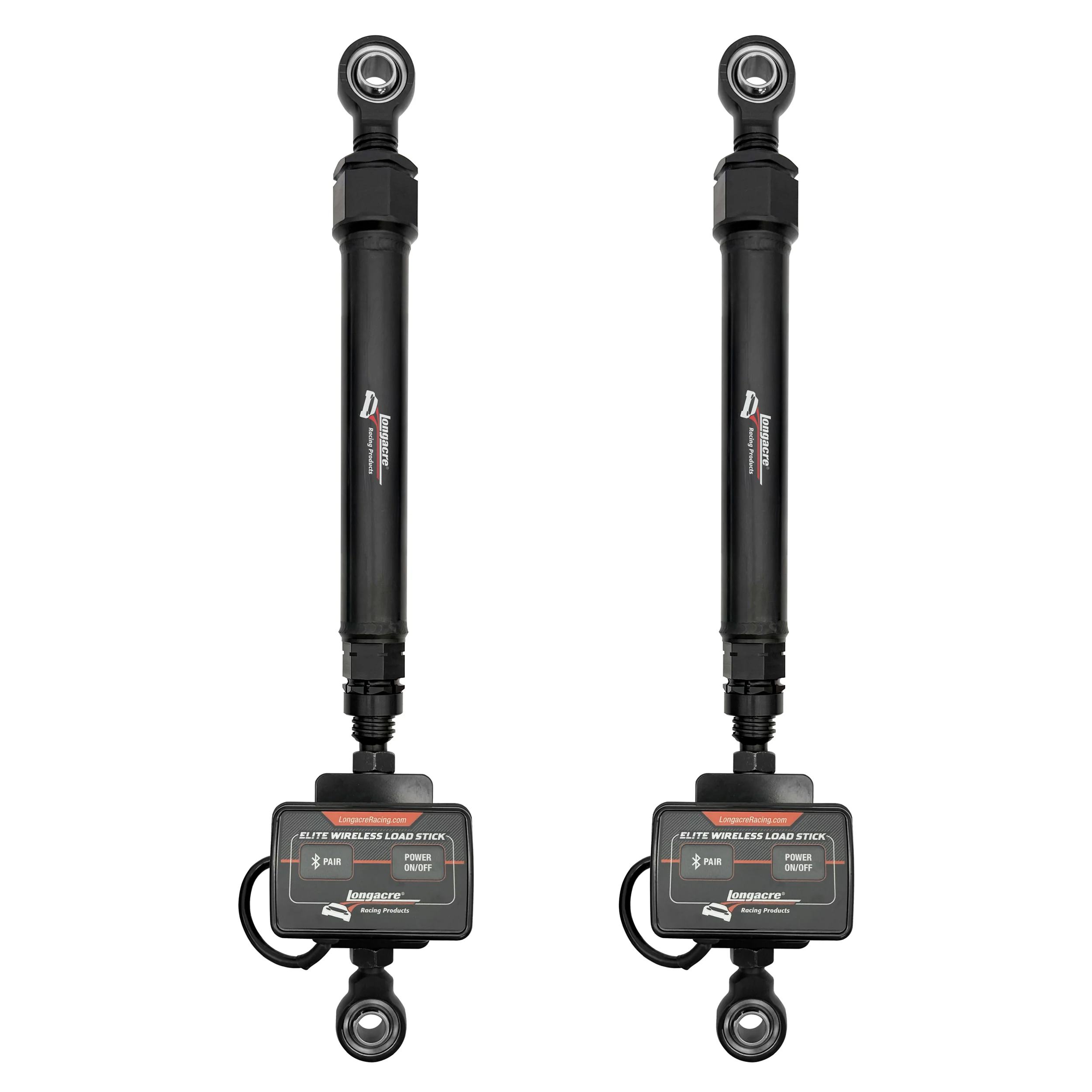

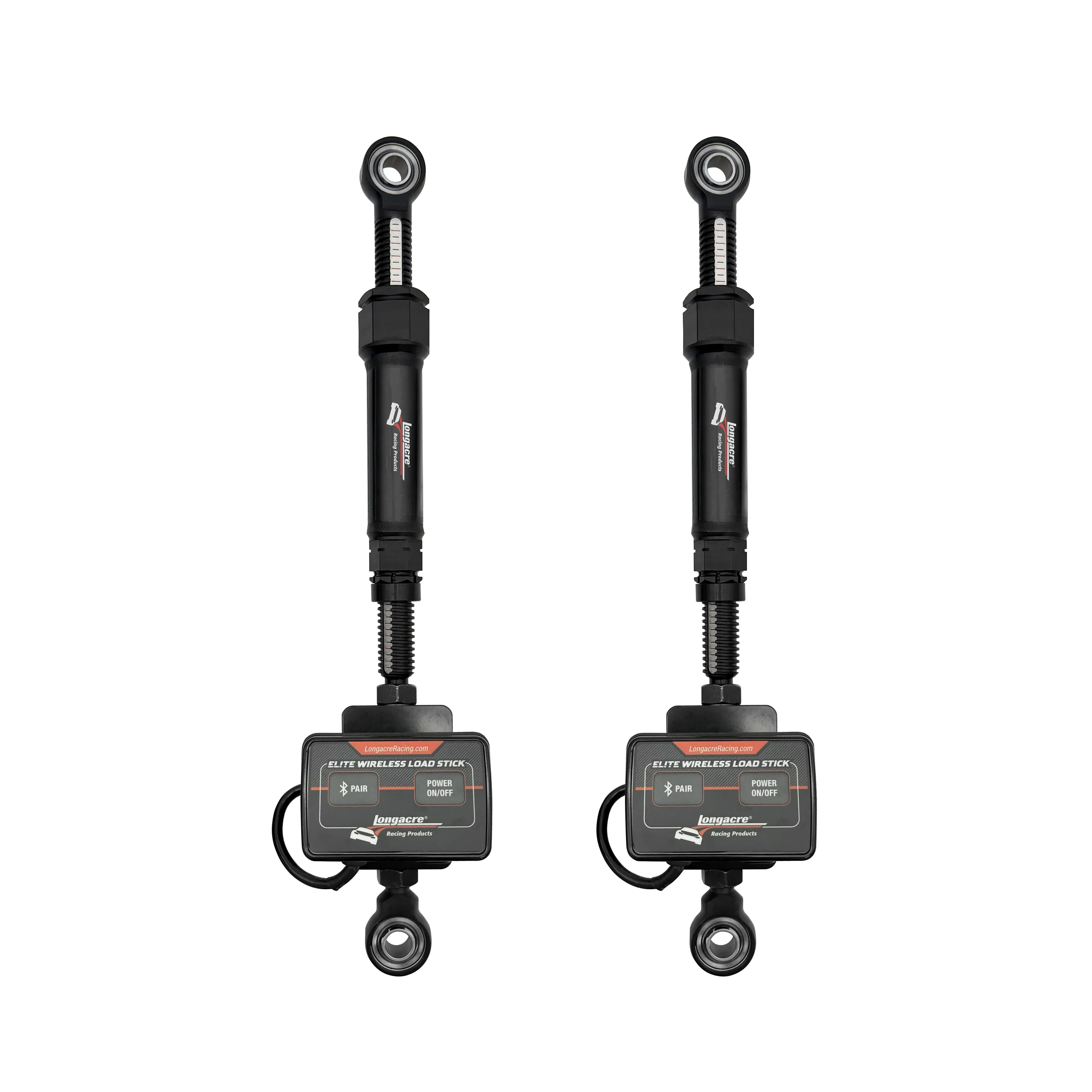

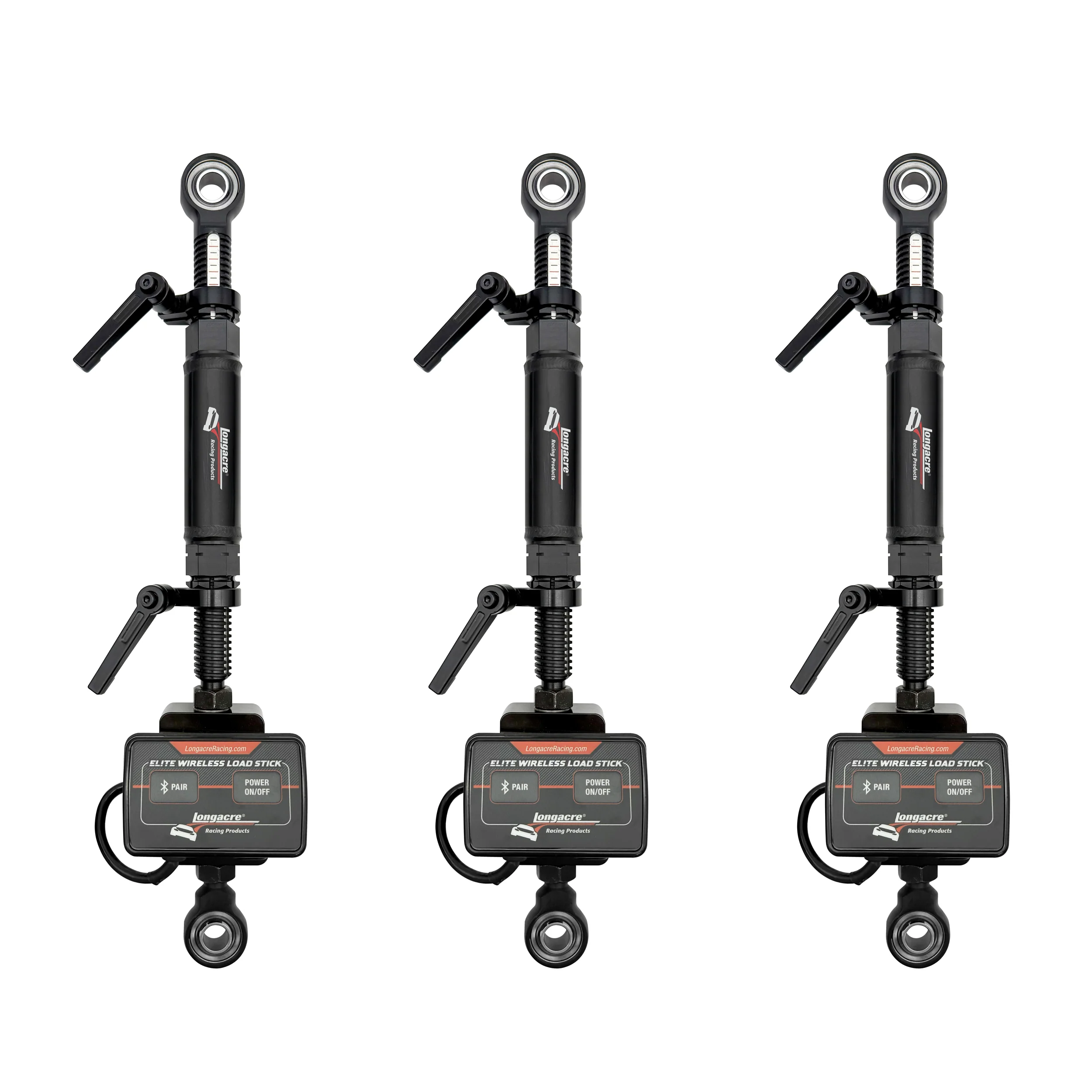

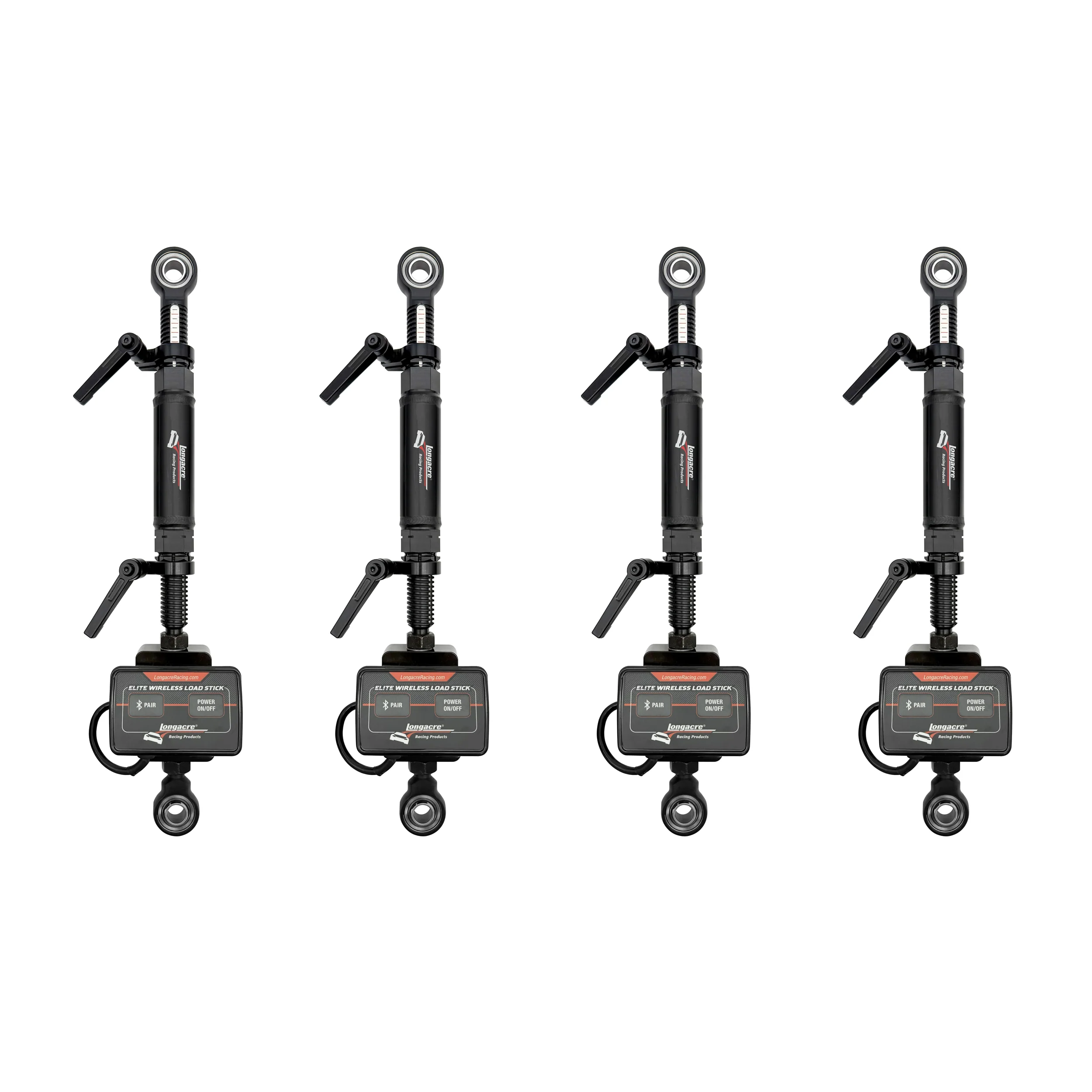

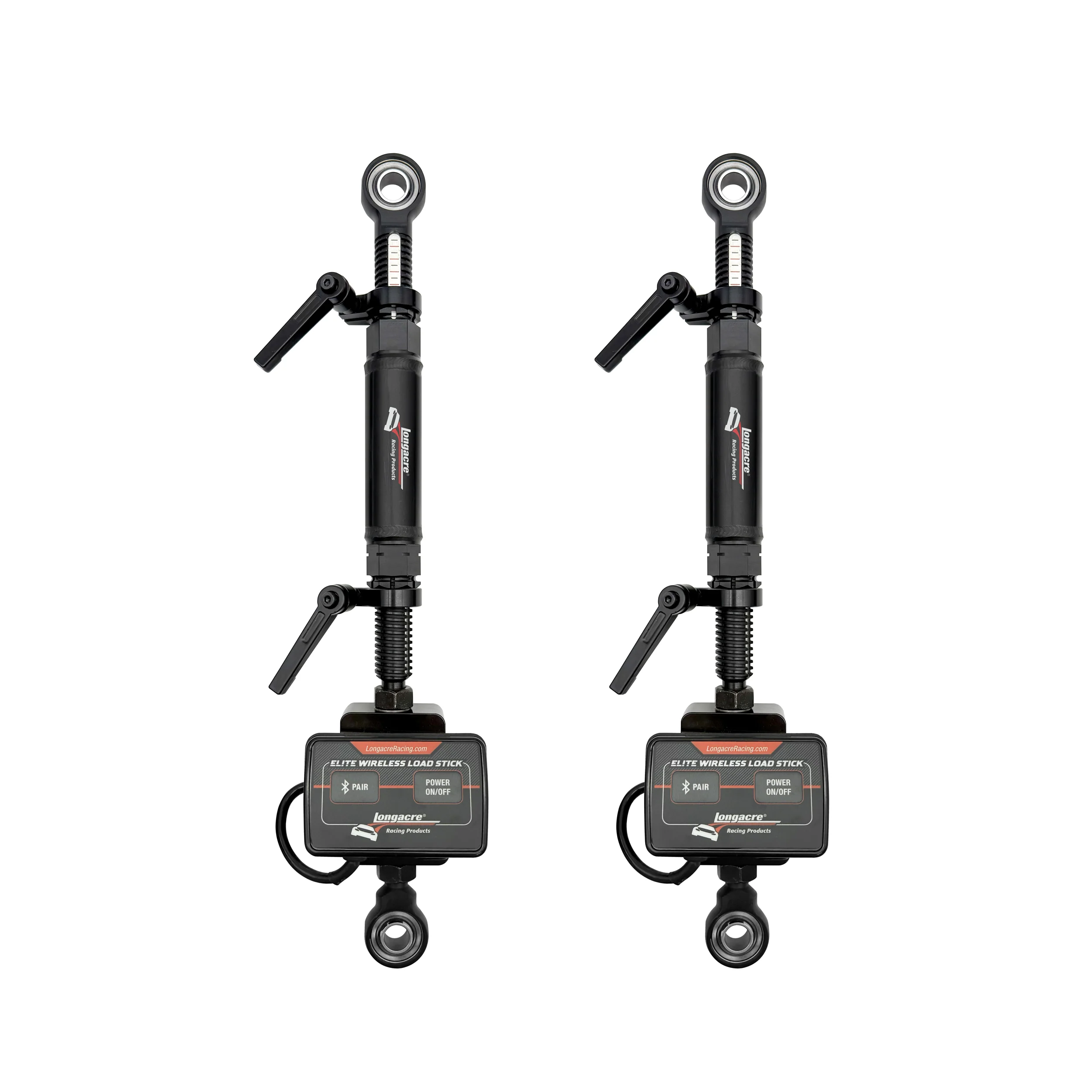

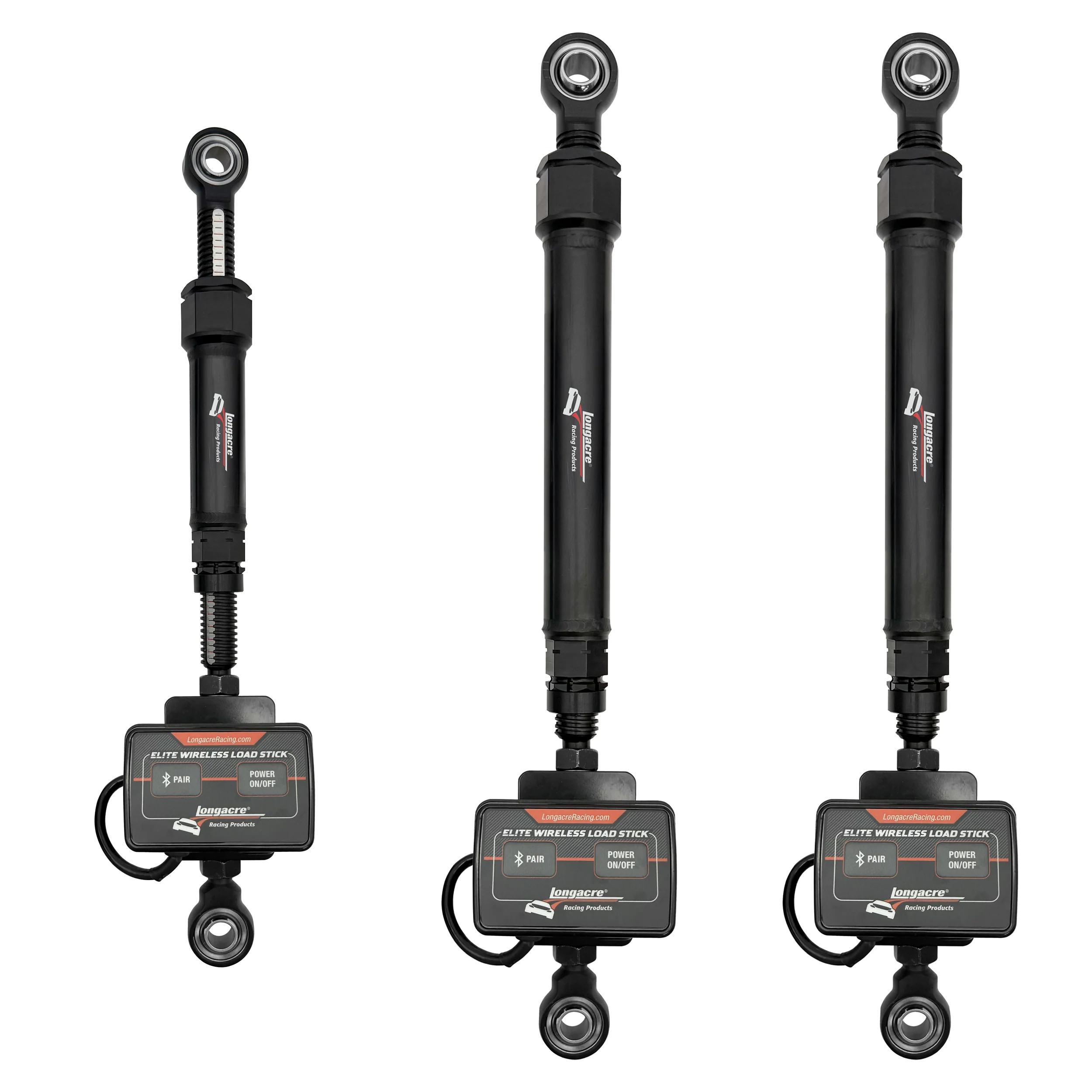

Choose from single, dual, three, or four stick sets to fit your specific setup needs.

QUICK & ACCURATE LOAD READING
Measure static load at ride height on any corner of the vehicle -no pulldown rig required.

HIGH-CAPACITY PERFORMANCE
Each load stick features a robust 3,000 lb (1,360 kg) load cell capacity for reliable, race-ready results.

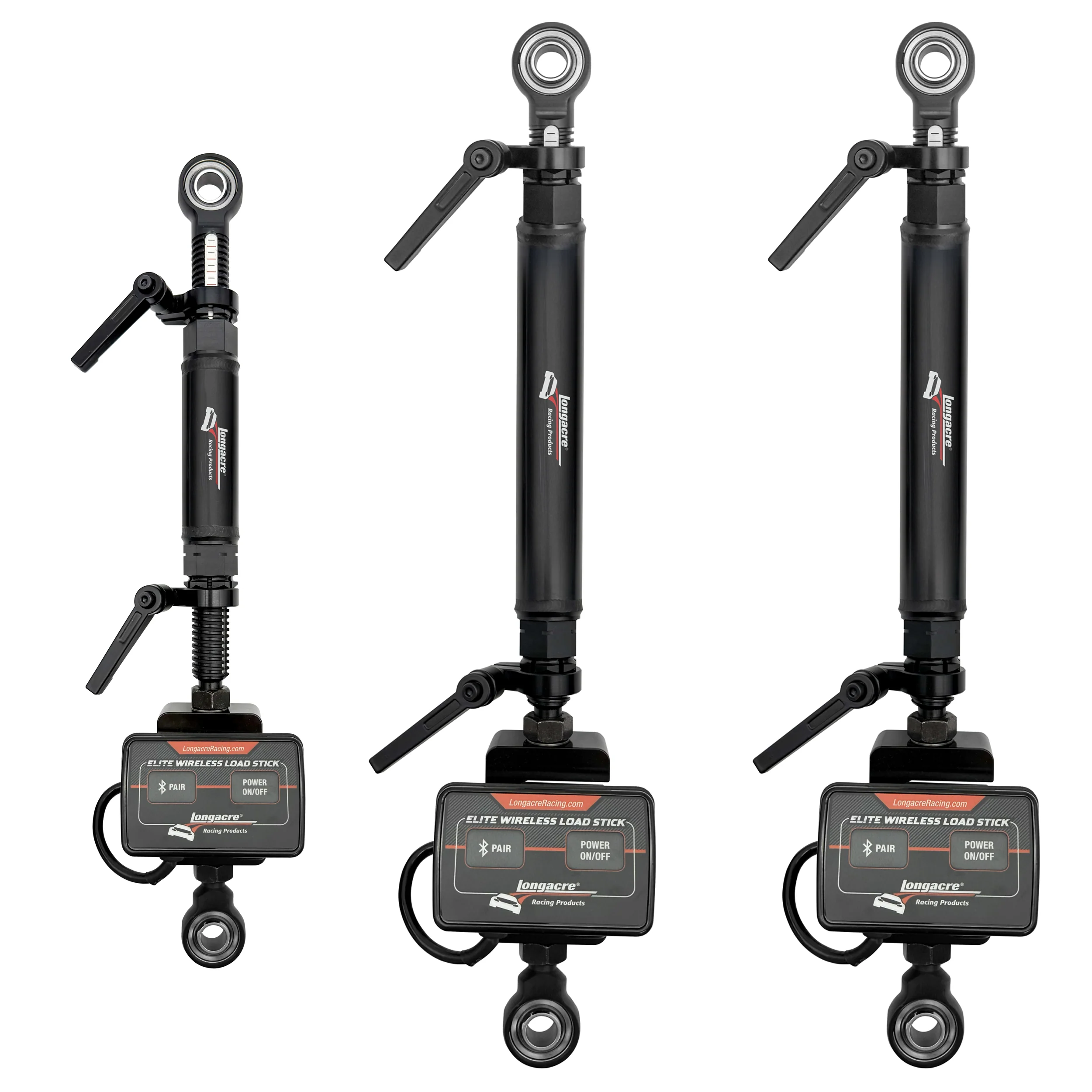

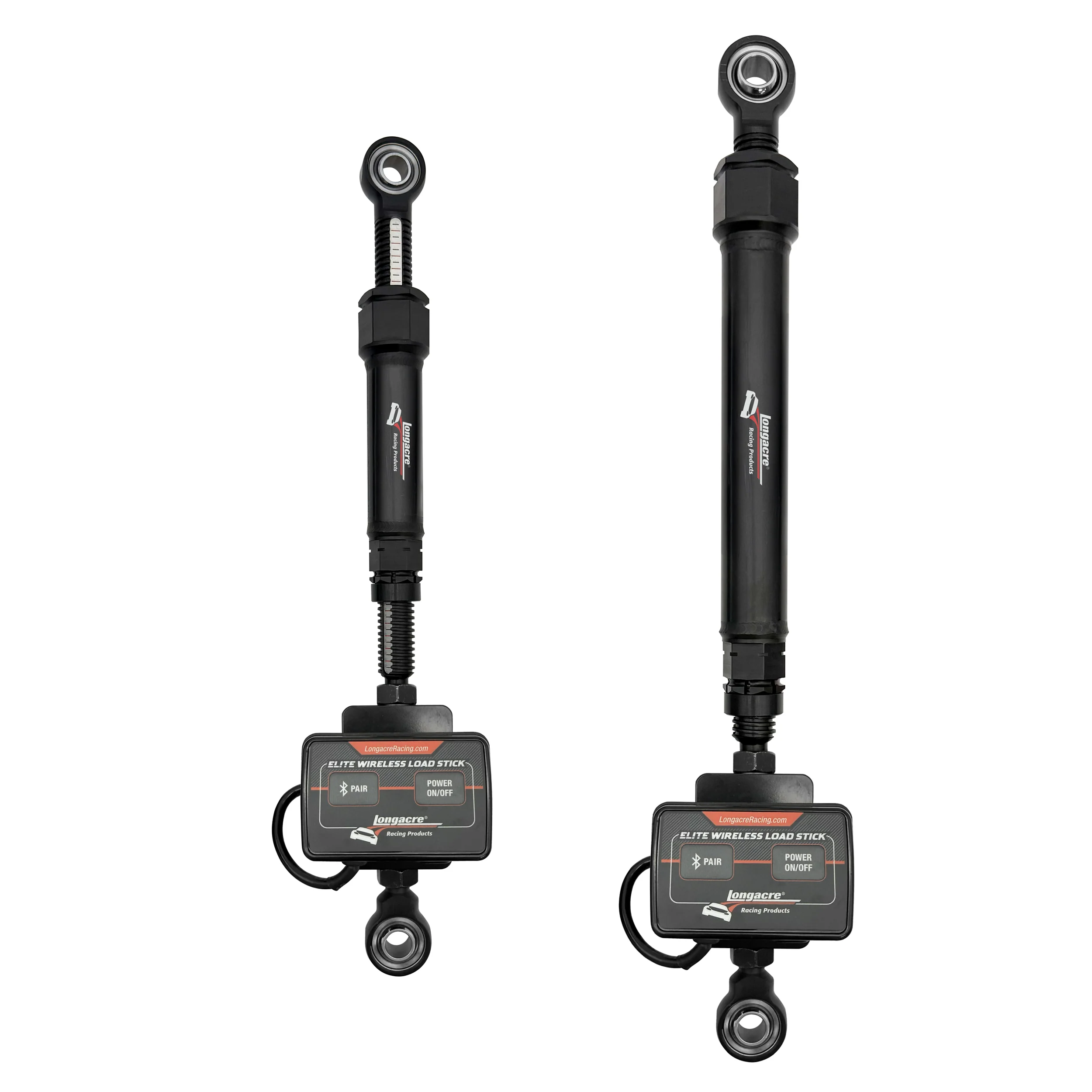

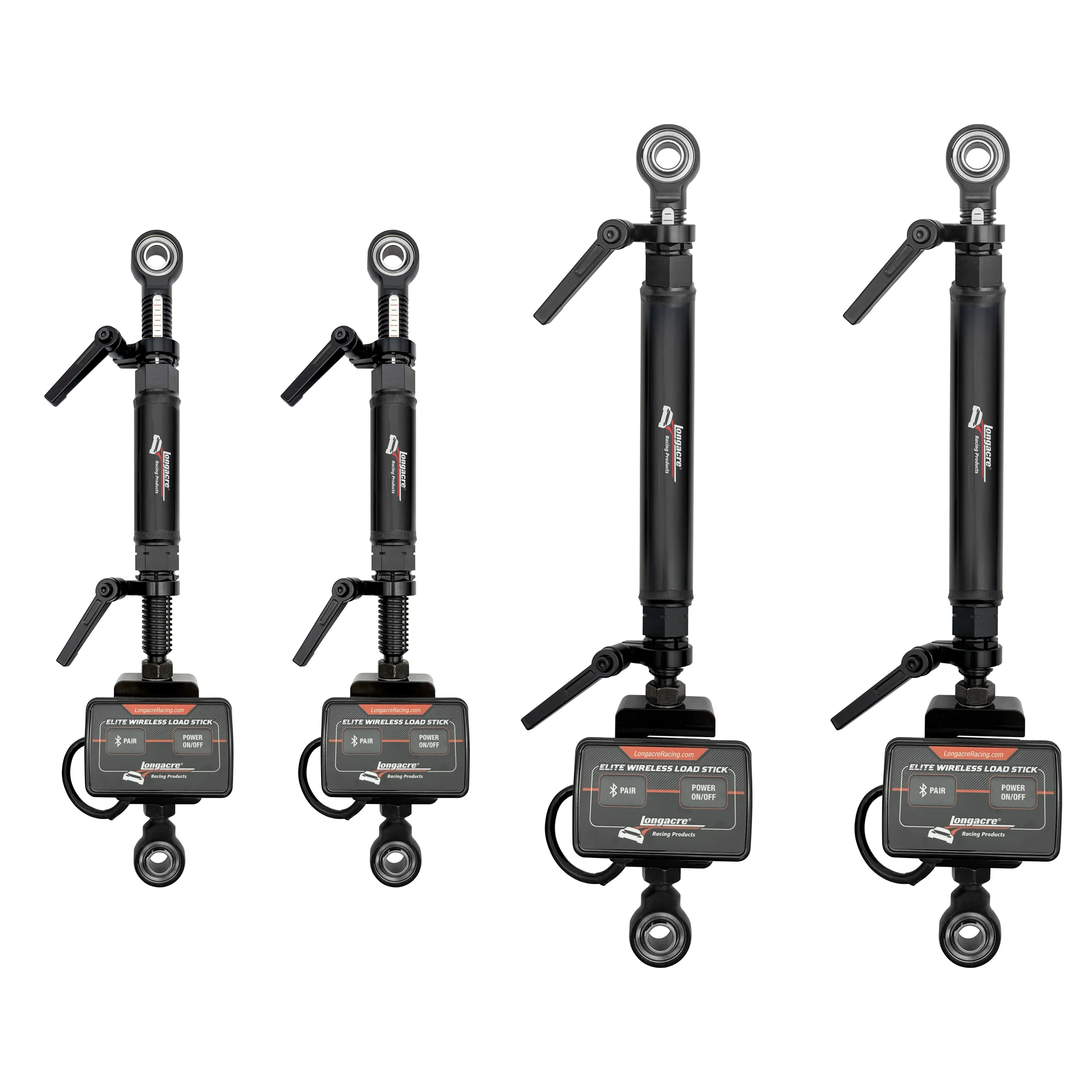

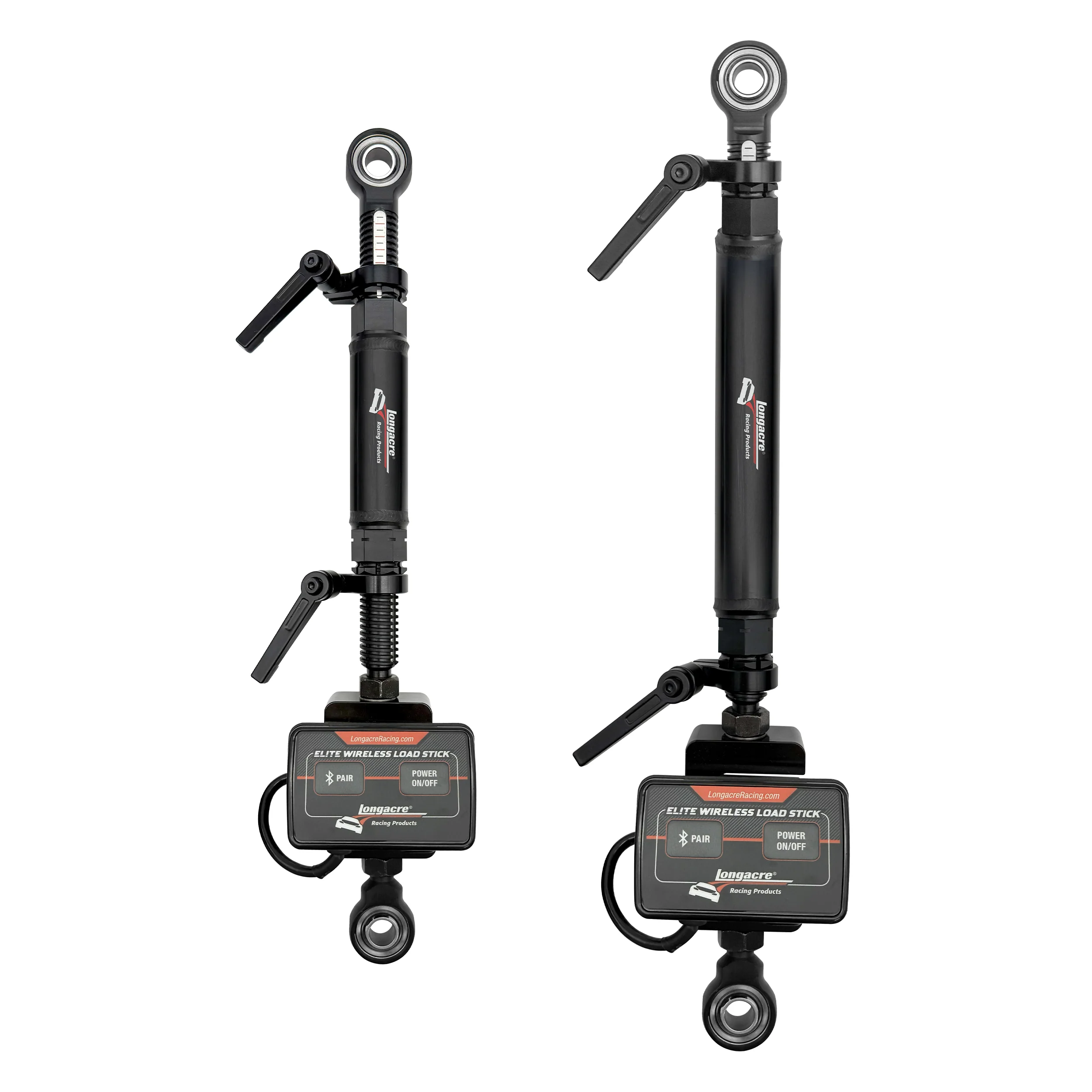

ADJUSTABLE BODY LENGTHS
• Short: 12” minimum – 16.75” extended
• Long: 15” minimum – 22.75” extended

COMPACT & STREAMLINED DESIGN
• Width 3.25” (83 mm) (with wireless module)
• Depth 2.50” (64 mm) (with wireless module

Optional Ratcheting Wrench Sold Separately. (Part #52-73700)
